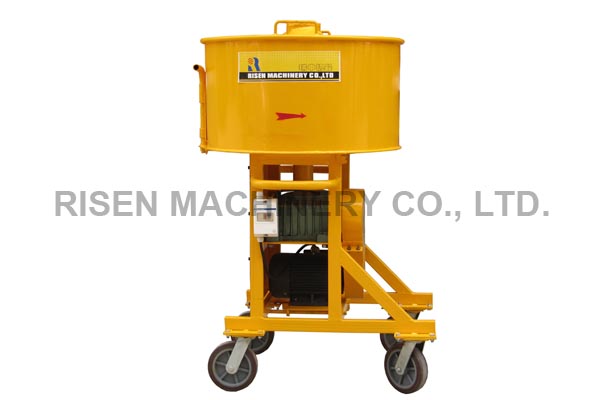

RISEN RM200

A vertical mortar mixer, mainly applied for mixing the cement, sand and water. A good partner of RISEN mortar pump RPT30, RG50/40, etc.

Mixing tank capacity: 260L

Mixing speed: 36r/min

Description:

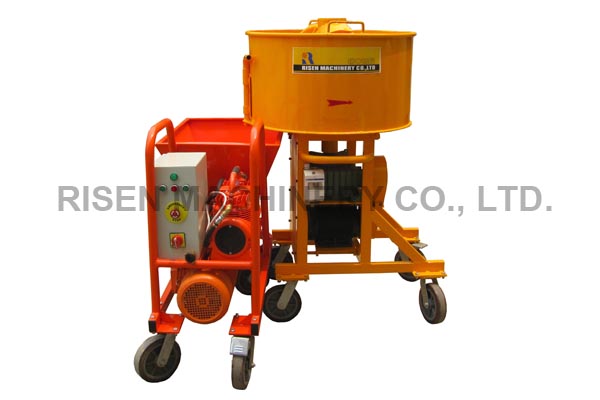

RISEN RM200 is a vertical mortar mixer, designed for RISEN mortar pump, such as RPT30, RG50/40. It is mainly applied for mixing the cement, sand and water.

Application:

A good partner of RISEN mortar pump, applied for mixing the cement, sand and water.

Features:

● High efficiency; mix the materials well within a short time;

● Big work region. The mixer can work in the small construction site;

● Convenient maintenance. Simple transmission structure principle; Hopper can be disassembled easily from the bottom frame;

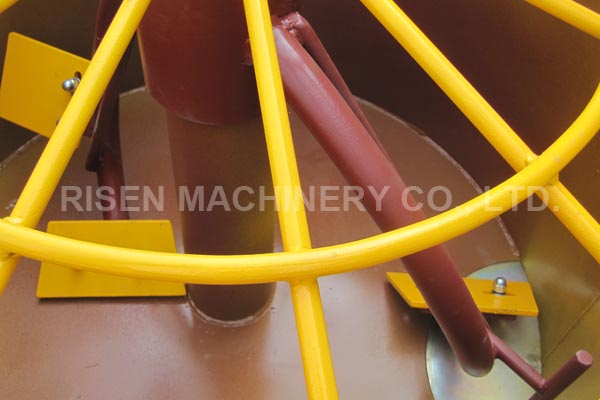

● Convenient clear work. The agitator can be moved easily.

Technical Data

Mixing Tank Volume:

260L

Motor Power:

3kW

Mixing Shaft Rev.:

36rpm

Discharge Height:

830mm

Feed Height:

1335mm

Reducer Model:

WPO120-30

Weight:

260KGS

Overall size (L*W*H):

760*800*1408mm

Advantage

● Tank body manufactured by the thicker plate for more reliable work and longer use life;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Painted after sandblasting for a pretty appearance.
