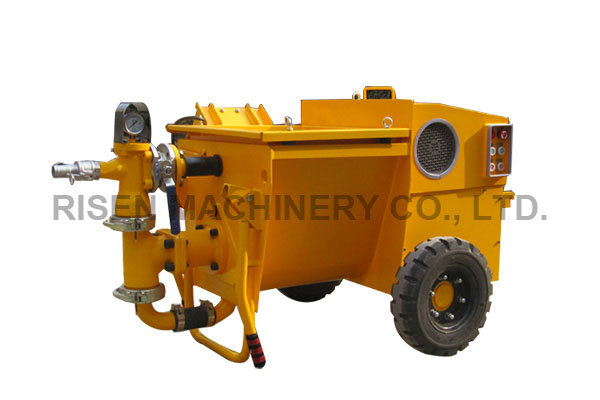

RISEN RG50/40

A kind of piston and ball controlling pump, to pump the wet ready-mixed cement slurry or mortar, etc.

Output: 50 Litre/min

Work pressure: 4MPa (40bar)

Description:

RISEN RG50/40 is a single piston mortar pump. It is a kind of piston and ball control pump, and the conveying line, piston and cylinder is specially designed and processed. This machine can be used not only for pumping the cement slurry or mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying.

RISEN MACHINERY system | RISEN MACHINERY CMS

Application:

To pump/grout the wet ready-mixed cement slurry, mortar or similar materials in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering , subway and civil engineering etc.

Features:

● Single piston single acting pump.

● Switch by ball balve.

● Mechanical transmission, low failure rate.

● Integrate pump head and hopper; prevent education and deposition together with the paddle agitating.

● Compact structure, conveniently for maintaining.

Technical Data

Output

50L/min

Cylinder Dia

Φ90mm

Working Pressure

4MPa(40bar,580psi)

Piston Stroke

85mm

Piston Speed

95/min

Inlet Diameter

75mm

Outlet Diameter

38mm

Max. Sand Size

5mm

Suitable Ratio of Cement : Sand:

≥1:3

Main power:

*E-motor 5.5kw/10ph

Overall dimension:

1610*1024*900mm

Weight

300kg

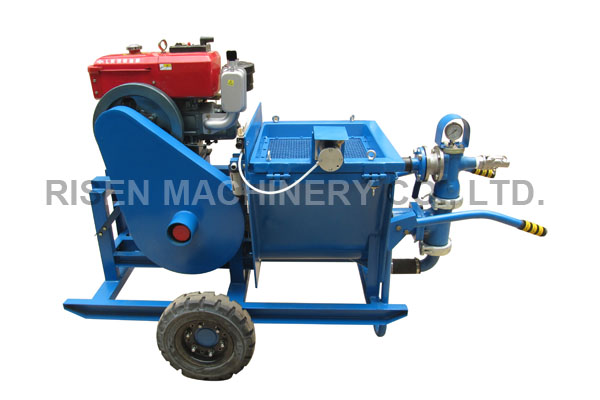

Note: * Diesel engine is optional.

Advantage

● Adopt separating vibrating sieve, good vibrating and easy to clean and maintenance;

● Shot blasting handling for all the sheet metal parts;

● Adopt the industrial plug for the safe operation;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Painted after sandblasting for a pretty appearance.
