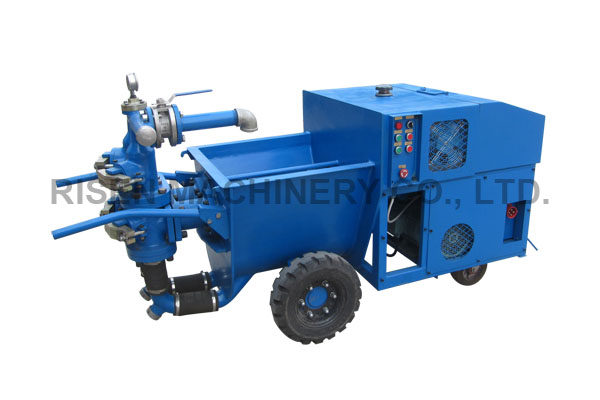

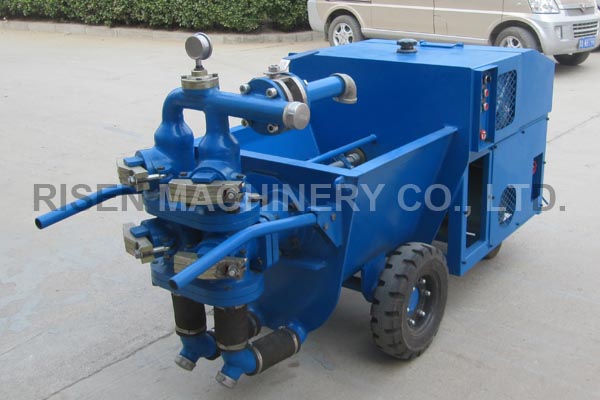

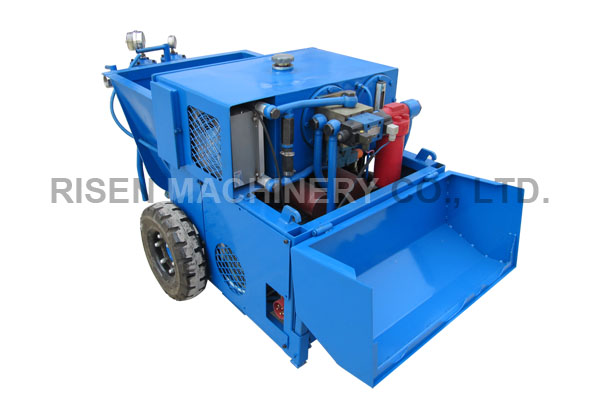

RISEN RG60/50

A hydraulic double-piston pump with double cylinder and single acting, to pump the wet ready-mixed cement mortar, etc.

Output: 60 Litre/min

Work pressure: 5MPa (50bar)

Description:

RISEN RG60/50 is a hydraulic double-piston mortar pump with double cylinder and single acting. It has the advantages of compact structure, reliable operation, low fault rate, convenient cleaning and maintenance, etc. This machine can be used not only for pumping the cement slurry or mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying.

RISEN MACHINERY system | RISEN MACHINERY CMS

Application:

To pump/grout the wet ready-mixed cement slurry, mortar or similar materials in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering , subway and civil engineering etc.

Features:

● Double-cylinder single-acting;

● Directional-control ball valve;

● Hydraulic drive;

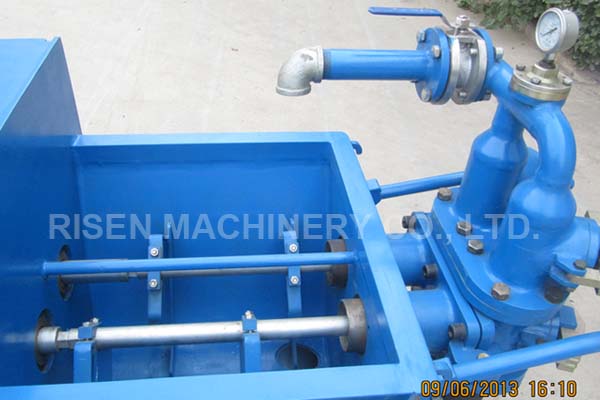

● Integrate pump head and hopper, prevent education and deposition together with the paddle agitating;

● High frequency work cylinder, less pulse;

● Compact structure, convenient for maintaining.

Technical Data

Output

60L/min

Work pressure

5MPa(50bar)

Cylinder Dia.

Φ90mm

Cylinder

2

Piston stroke

145mm

Piston speed

82/min

Outlet diameter

50mm

Max. particle size

5mm

Suitable rate of cement sand

≥13

Hopper Capacity

160L

Power

E-motor 7.5kw

Transmission

Fluid drive

Overall Dimensions

1950*1150*1150mm

Advantage

● Hydraulic double piston structure to have a more continuous pumping;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Painted after sandblasting for a pretty appearance.
