RISEN RG130/20

A mechanical single-piston pump with double acting. which has the several advantages: simple structures, working reliability, light weight, compact volume and lower work pressure.

Max. output: 130 Litre/min

Max. work pressure: 2MPa (20bar)

Description:

RISEN RG130/20 is a kind of single cylinder piston pump with double-acting. It is applied for the processing of lower pressure grouting. This machine is suitable for grouting with single slurry.

Application:

Middle-pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.

Features:

● Single piston double acting;RISEN MACHINERY system | RISEN MACHINERY CMS

● Gear & Vee belt transmission makes this pump high mechanical efficiency and working reliability;

● Integrated valve house and ball valve, together with compact structure;

● Body of pump is made of aluminum casting, low weight is an advantage for transport;

● Grouting/pumping mud slurry, cement slurry, soluble glass etc.

Technical Data

Output:

130L/min

Working Pressure:

2MPa

Working Cylinder Dia.:

Φ75 mm

Piston Stoke:

85mm

Piston Speed:

180 times/min

Inlet Hose Dia.:

51mm

Outlet Hose Dia:

38mm

Power:

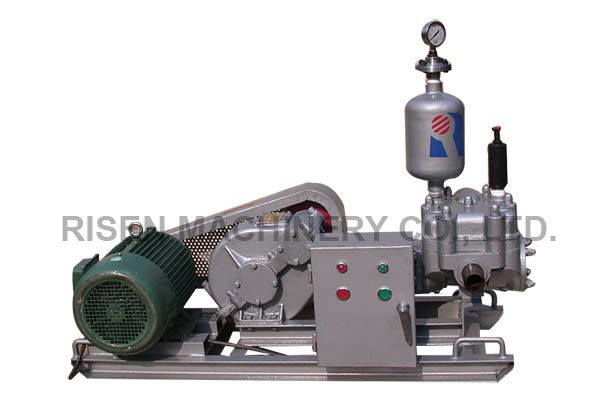

*E-motor 5.5kW

Weight:

230kg

Overall Dimension (L×W×H):

1280 x 485x645mm

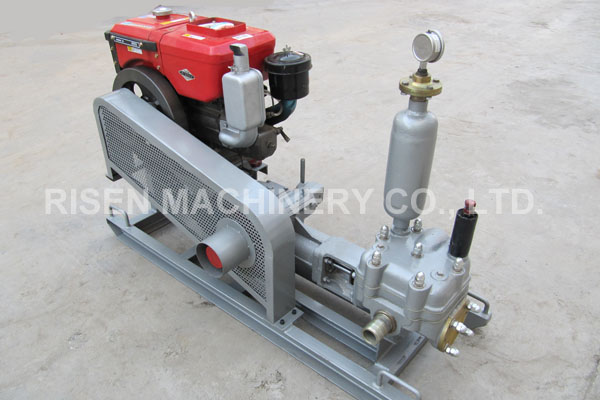

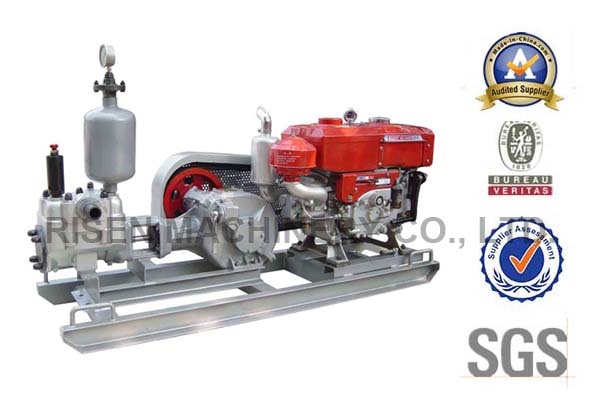

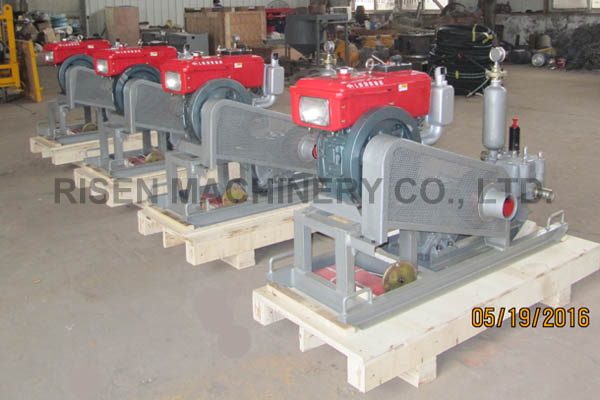

 Note: *Diesel engine is optional.

Advantage

● Gearbox housing manufactured by thicker plate as our drawing;

● Standard gears and shaft to ensure the enough strength;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● All the casting units manufactured as our special design to ensure the enough strength;

● Painted after sandblasting for a pretty appearance.
