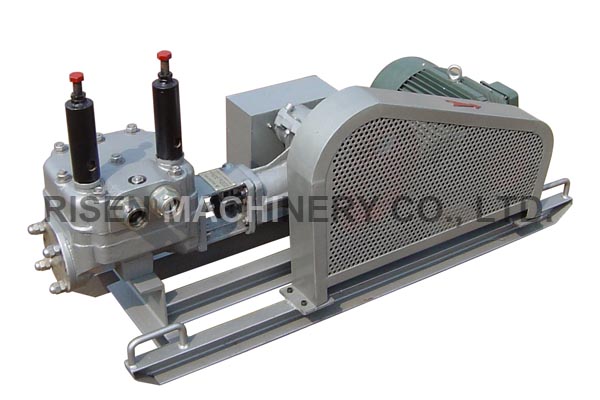

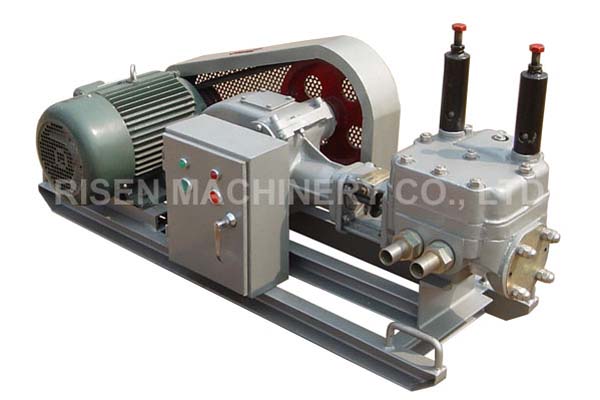

RISEN RG60/40

A mechanical single-piston pump with double acting. It has two couple of discharge outlet and suction inlet, available to grout either of two same slurries and two different slurries

Max. output: 60 Litre/min

Max. work pressure: 4MPa (40bar)

Description:

RISEN RG60/40 is a kind of single cylinder piston pump with double-acting. It is applied for the processing of middle pressure grouting. This machine is suitable for grouting with either of two same slurries and two different slurries, such as cement slurry and sodium silicate.

Application:

Middle-pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.

Features:

● Available to be the double slurry grouting or single slurry grouting;

● Single piston double acting;

● Gear & Vee belt transmission makes this pump high mechanical efficiency and working reliability;

● Integrated valve house and ball valve, together with compact structure;

● Body of pump is made of aluminum casting, low weight is an advantage for transport;

● Grouting/pumping mud slurry, cement slurry, soluble glass etc.

Technical Data

Output

60L/min

Working Pressure

4MPa (40kgf/cm2)

Working Cylinder Dia.

Φ75 mm

Piston Stoke 85mm
Piston Speed

85 times/min

Inlet Hose Dia. 38mm
Outlet Hose Dia. 32mm
Power

*E-motor 5.5kW

Weight 260kgs
Overall Dimension (L×W×H)

1280 x 485x645mm

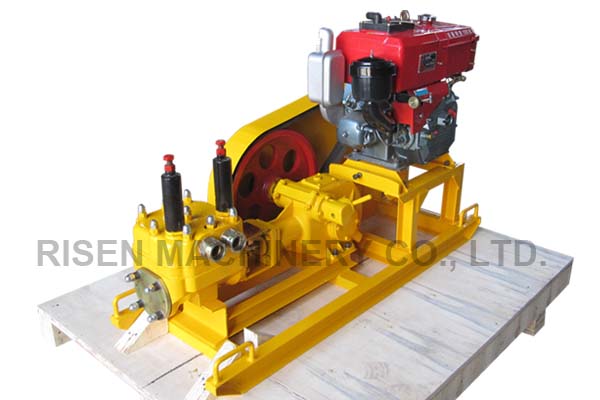

Note *Diesel engine is optional.

Advantage

● Gearbox housing manufactured by thicker plate as our drawing;

● Standard gears and shaft to ensure the enough strength;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● All the casting units manufactured as our special design to ensure the enough strength;

● Painted after sandblasting for a pretty appearance.
