RISEN RHT38

To spray the wet ready-mixed cement slurry, mortar, etc. A kind of hose pump, with less consumable part and simple structure and operation, equipped with small air compressor.

Output: 30 Litre/min

Air compressor capacity: 250 Litre/min

Squeeze hose ID: 38mm

Description:

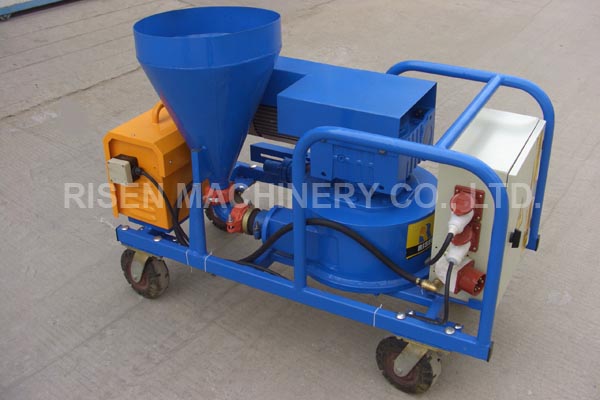

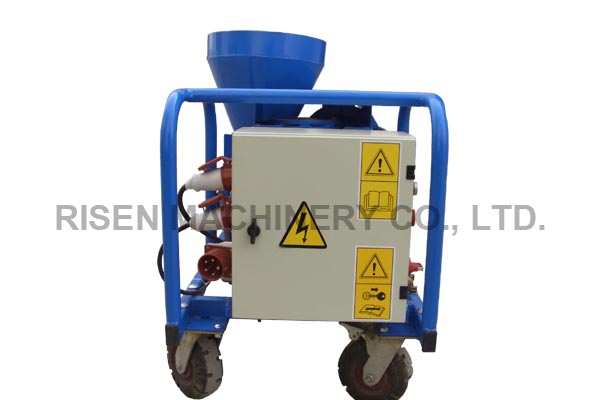

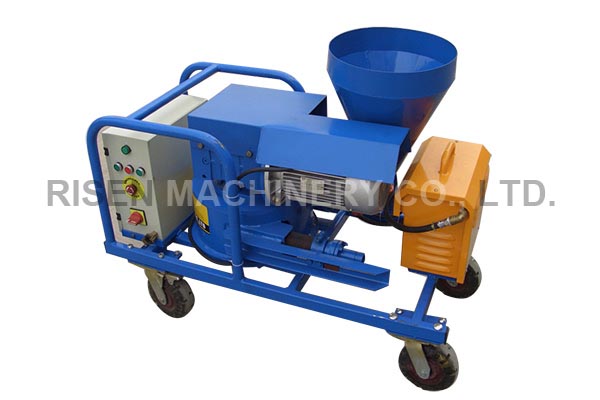

RISEN RHT38 is a kind of hose pump, consisting of pump head, gearmotor, electrical control box, small hopper, small air compressor and chassis. It is suitable for pumping or spraying the wet ready-mixed cement slurry, mortar, lime plaster, etc.

RISEN MACHINERY system | RISEN MACHINERY CMS

Application:

To spray the wet ready-mixed cement slurry, mortar or similar materials in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering , subway and civil engineering etc.

Features:

RISEN MACHINERY system | RISEN MACHINERY CMS

● Squeeze hose pump as the main unit, no-valve work, pipeline broad, available for the viscosity materials.

● Mensurable pump, no refluence, flow steady.

● High vacuum, strong self-suction.

● Cleaning convenient.

● Small size, suitable to work in small space.

Technical Data

Rated Output

30 L/min

Rated Working Pressure

3 MPa

Total Power

4.5Kw

Main Electric Motor

2.2 Kw

Stretch hose ID

38mm

Rated Air Output

250L/min

Max.Conveying Dist.

30m

Hopper Capacity

26L

Loading Height

800mm

Conveying Hose ID

38mm

Air Hose ID

13mm

Overall Dimension

1400×600×800mm

Weight

260kgs

Advantage

● Maintain convenient, less consumable parts, low consume for working;

● IP55 100% new electrical motor;

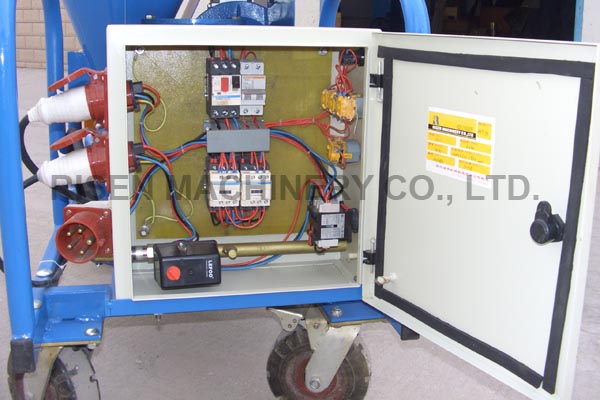

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Painted after sandblasting for a pretty appearance.
