RISEN RH15W

A small grout pump, with less consumable part and simple structure and operation, equipped with small air compressor, to spray the wet ready-mixed cement slurry or similar slurry.

Output: 5 Litre/min

Air compressor capacity: 250 Litre/min

Squeeze hose ID: 15mm

Description:

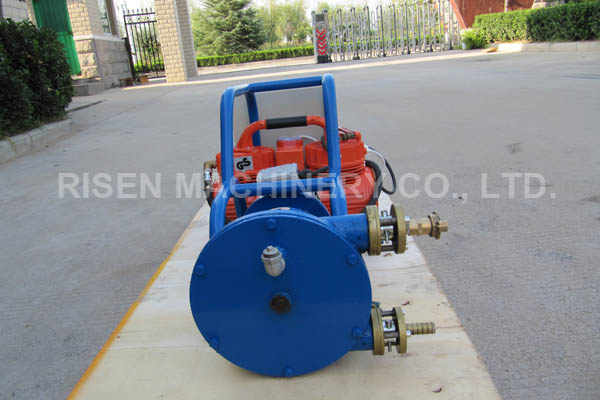

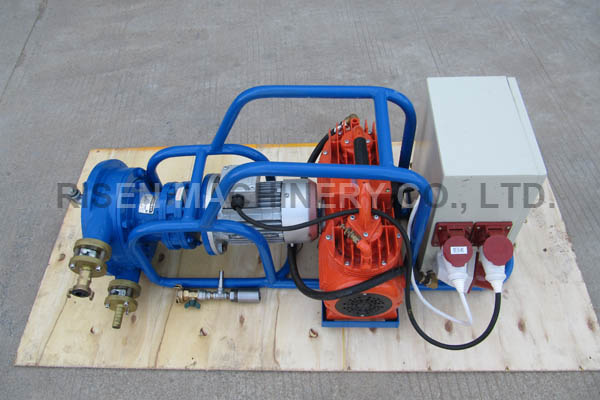

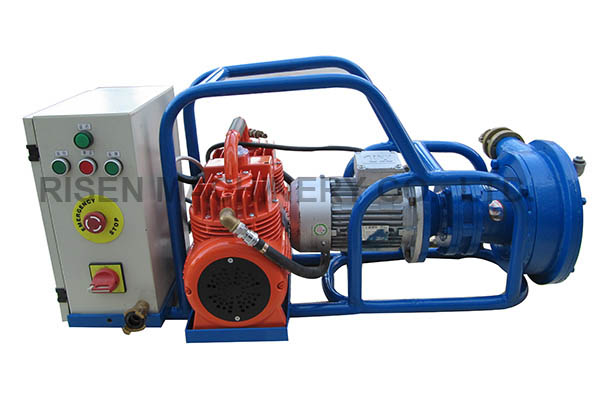

RISEN RHT38 is a kind of hose pump, consisting of pump head, gearmotor, electrical control box, small air compressor. It is suitable for pumping or spraying the wet ready-mixed cement slurry or other similar slurry without any particle.

Application:

To spray the materials without any particle, such as slurry (cement grout), coating, water-proof glue, etc.

Features:

● Squeeze hose pump as the main unit, no-valve working, broad flow pass;

● Suitable for the refractory or viscous slurry;

● Pumping with constant volume, no refluence;

● Relative stable flow, steady plastering;

● High degree of vacuum, strong suction capacity;

● Cleaning convenient;

● Small unit, suitable for working in the small space.

Technical Data

Output:

300L/h

Compressed air consumption:

250L/min

Max. work pressure:

0.8MPa

Inlet Diameter:

19mm

Outlet Diameter:

19mm

Electric Power:

1.75kW

Max. suction left of the hose pump:

2m

Advantage

● Maintain convenient, less consumable parts, low consume for working;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Painted after sandblasting for a pretty appearance.
