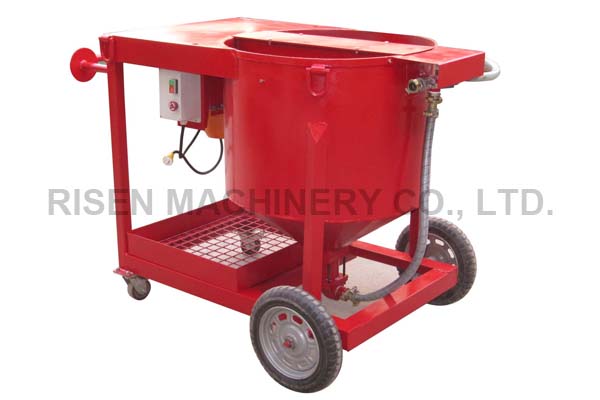

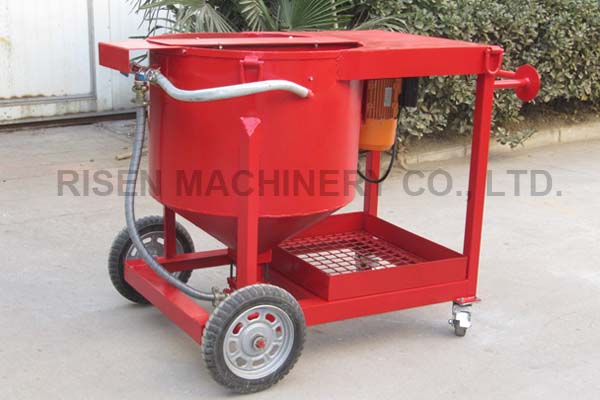

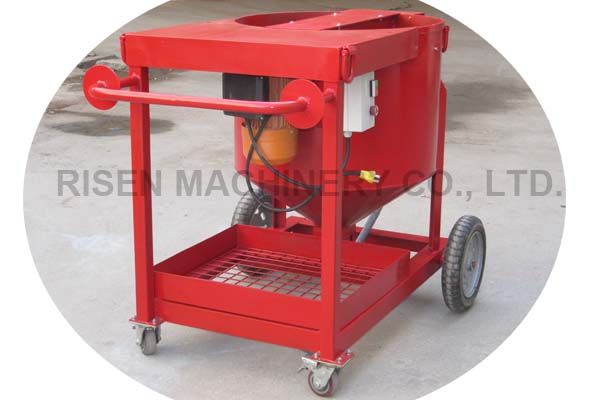

RISEN RGM40-200

A small-size electric grout pump with mixer

Output: 40 Litre/min

Mixing tank volume: 240L

Power: Single-phase electric motor 2.2kW

Description:

RISEN RGM40-200 grout mixer pump is a small size grout pump with mixer. It is equipped with a screw-type pump as the grouting pump and a high efficiency mixing tank as the mixing unit. This unit can complete the mixing and grouting works by itself. It has the advantages of small size, light weight and easy to move.

Application:

Low-pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.

Features:

● Be able to do the works of mixing and grouting under the running of one electric motor;

● Small power, driven by single-phase electric motor. Suitable for the environment without the 3-phase power;

● Even discharging, high efficiency mixing, light weight and easy to move;

● Screw-type pump as the grouting unit, easy to clean and maintain;

● Suitable for the mixing & grouting of the cement slurry or other similar slurries.

Technical Data

Output:

40L/min

Discharge Pressure:

1MPa (10bar)

Grout Hose ID:

25mm

Mixing Tank Volume:

240L

Rated Mixing Speed:

810rpm

Motor Power: Single-phase Electric motor 2.2kW

Weight:

240kgs

Overall measurement:

1700×1040×1160mm



Advantage

● Standard seal parts to ensure the excellent seal quality;

● The sheet metal parts made of the thicker steel plate to have a stronger quality;

● IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;

● Painted after sandblasting for a pretty appearance.
