RISEN RG30/120

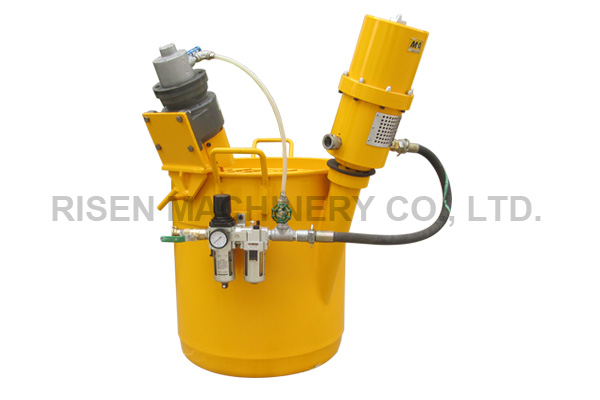

A small-size air driven grout pump with mixer

Output: 30Litre/min

Mixing tank volume: 120L

Air consumpiton: 2,200Litre/min

Description:

RISEN RG30/120 is a small-size air driven grout pump with mixer. The pump has the advantages of small size, light weight, reliable operation. It can work in the flammable & explosive places and the places with variable temperature and humidity.

Application:

Doing the water-shutoff grouting in mine, tunnel, hydro-power engineering, subway etc. construction projects, filling the cracks, grouting the cracked rock bed, grouting with anchor cable, handling the soft foundation, and so on.

Features:

● A small work group consisting of portable grout pump and mixer;

● Air driven unit, available to work in the flammable & explosive places;

● Small size, light weight and reliable operation.

Technical Data

Output:

30L/min

Discharge Pressure:

3.2MPa

Pressure of Air Source:

0.4-0.6MPa

Air Consumption:

2200L/min

Ventilation Pipe Dia.:

3/4″ (20mm)

Mixing Tank Volume:

120L

Rated Mixing Speed:

180rpm

Weight:

95kgs

Overall measurement:

940×840×1060mm



Advantage

● Standard seal parts to ensure the excellent seal quality;

● The sheet metal parts made of the thicker steel plate to have a stronger quality;

● Painted after sandblasting for a pretty appearance.
