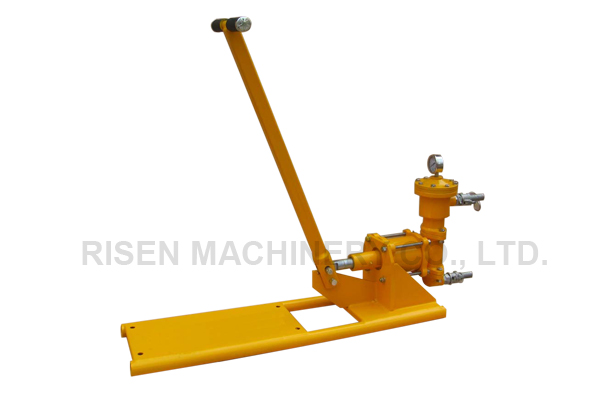

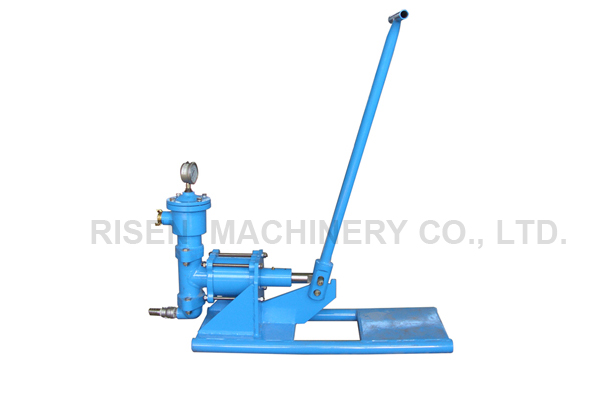

RISEN SB10

A hand operated piston grout pump, simple operation and controllable flow.

Output: 0~8 Litre/min

Rated work pressure: 1MPa (10bar)

Description:

RISEN SB10 is a hand-operation piston grout pump. It is mainly used in grouting cement slurry or the similar slurry. It has simple operation and controllable flow.

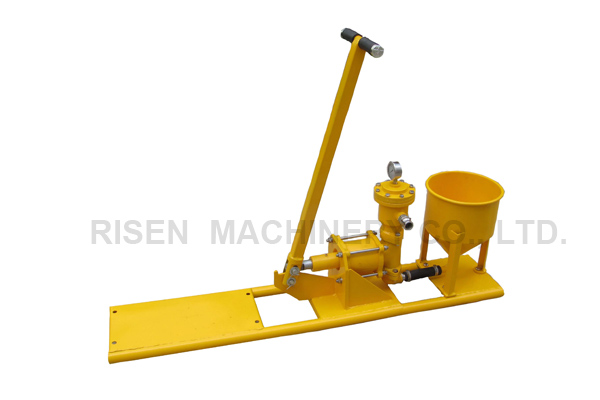

This machine has two types---standard one and special one. The special one is equipped with a hopper.

Application:

Manual grout the cement slurry or similar slurry for the crack repair of the bridge engineering, house construction, etc.

Features:

● Manual grouting, simple operation and controllable flow.

● Single-cylinder work, high vacuum degree, and strong self-suction capability.

● Small size and light weight, convenient for moving in a small space.

● Repair and maintain easily and fewer consumable parts.

Technical Data

Working Pressure

1 MPa

Rated output

0~8L/min

Piston Dia.

110mm

Piston stroke

42mm

Inlet hose

25mm

Outlet hose

25mm

Power

manual

Overall Dimension (LxWxH)

980x290x590mm

Weight

47KGS

Chassis

Skid

 Note *with rocker, the higher is 1065mm; with hopper, the length is 1480mm.

Advantage

● Standard seal parts to ensure the excellent seal quality;

● All the units manufactured as our special design to ensure the enough strength;

● Painted after sandblasting for a pretty appearance.
