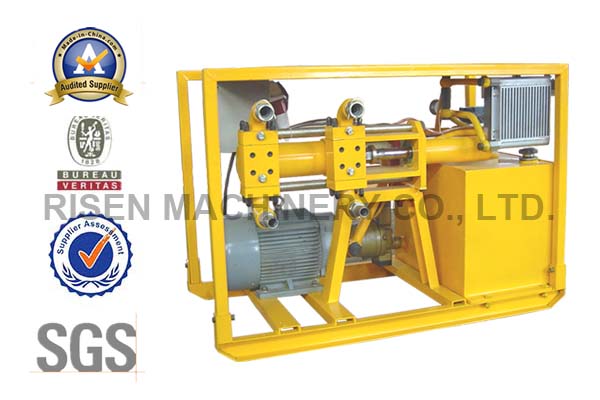

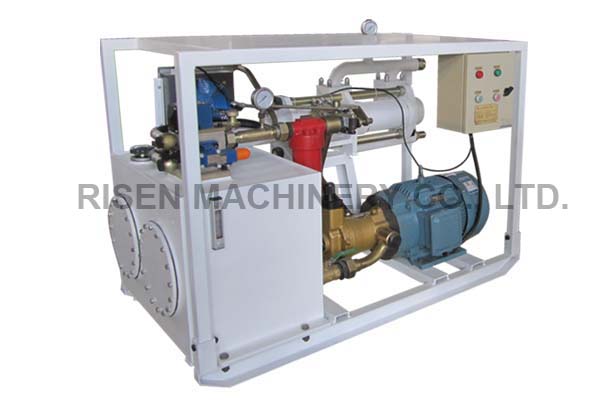

RISEN RG90

Full hydraulic high pressure grout pump.

Max. output: 100 Litre/min

Max. work pressure: 10MPa (100bar)

Description:

RISEN RG90 is the high pressure grout pump. It is a kind of piston pump with single cylinder and double acting. Its main oil pump is a variable piston unit adjusted by hand, so the output of pump can be adjusted. It has many advantaged characters of simple structure, higher working pressure.

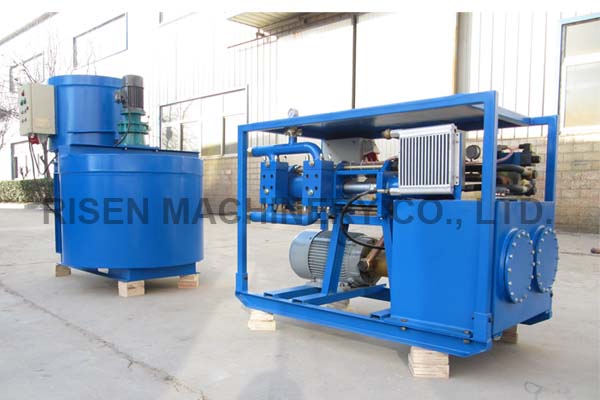

RISEN RG90 often works together with RISEN grout mixer.

Application:

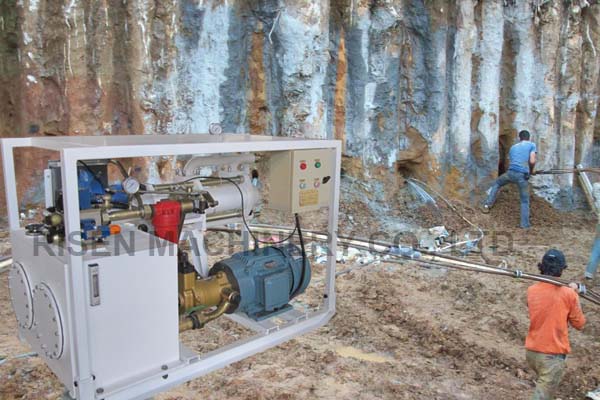

High pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.

Features:

● Plunger pump as oil pump for the reliable work under high-pressure;

● Variable displacement pump for the low heat system and high system efficiency;

● Solenoid operated directional valve or mechanical direction valve can be chose according to the different work environment.

Technical Data

Model:

RG90Y (RG90S)

RG90M

Max. Output:

100L/min

100L/min

Max. Working Pressure:

10MPa

9MPa

Max. Frequency:

45/min

45/min

Grouting Cylinder Dia.:

110mm

Grouting Cylinder Stroke:

150mm

Suitable Ratio W/C:

Below 0.35

Power:

11kW

18.5kW

Weight:

580 630

Overall Dimension

(L×W×H):

1505x770x1110 mm

Work Character:

Output can be automatically changed according to

the grouting pressure. Lower output with high

pressure and big output with lower pressure. Suit for

the technics needs to keep grouting presure.

Invariable pressure, but can be

continually adjusted by hand. Suit

for the technics needs change grouting speed.

Grouting way:

Single liquid (double liquid is optional)

Chassis:

Steel skid (wheel is optional)

Advantage

● Special electroplating for the work cylinder’s inner wall;

● Famous domestic or international standard hydraulic elements;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Painted after sandblasting for a pretty appearance.
