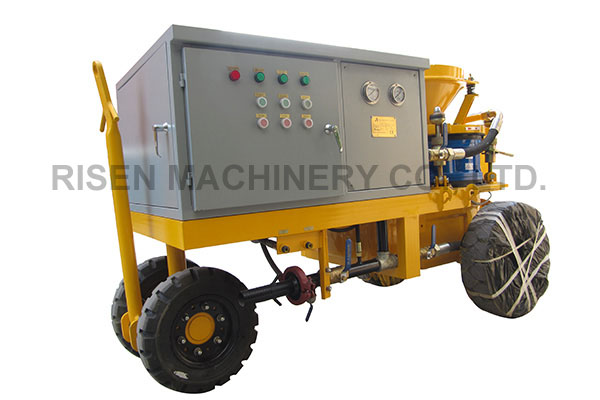

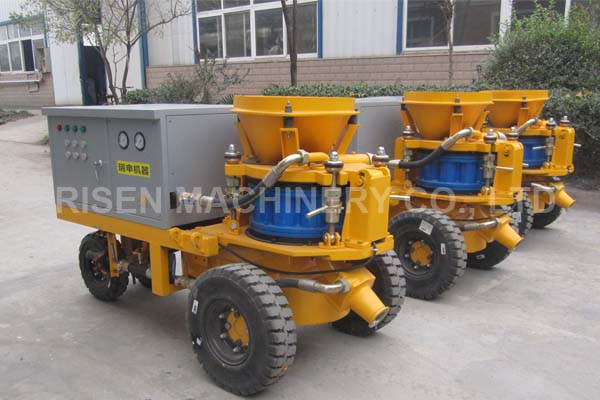

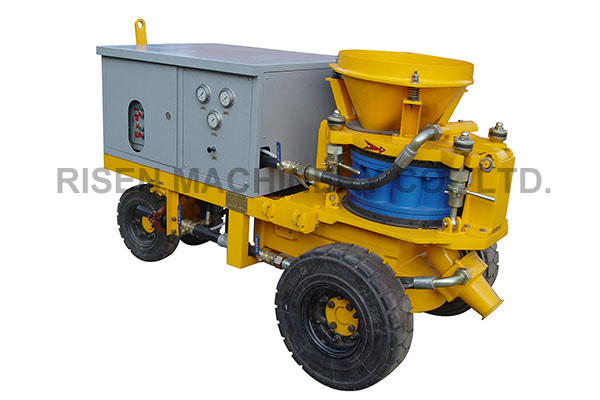

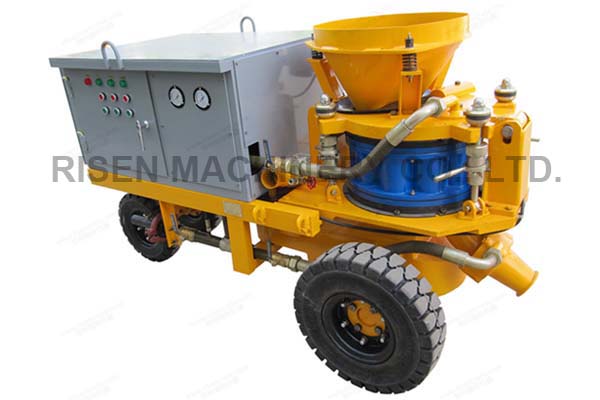

RISEN PZS3000

A rotary shotcrete machine not only for spraying the wet mixture but also for spraying the dry or damp mixture.

Available in E-motor or diesel engine

Output Capacity: 5 cubic meter/hour for wet shotcreting;

6.5~7 for dry or damp shotcreting.

Maximum Aggregate: 15mm

Description:

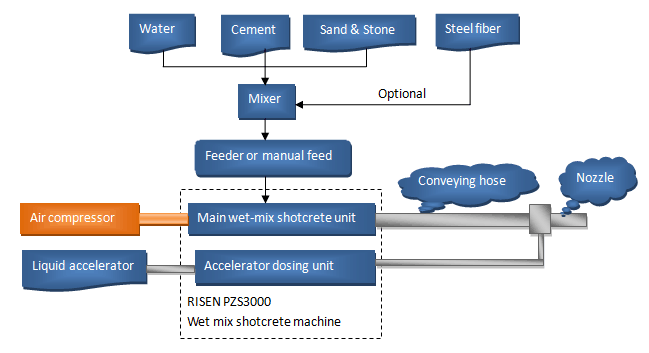

RISEN PZS3000 is a concrete spraying machine for the shotcreting process of wet or dry mixture. It is equipped with the dosing unit. The PZS3000 has been designed especially for steel fibre spraying.

RISEN MACHINERY system | RISEN MACHINERY CMS

Application:

● Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.

● Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

● Refractory spraying and repair for industrial kilns or kilns’ inner liner.

Features:

● Going-through rotor and forced vibrating hopper make mixture smoothly falling.

● Hose dosing pump unit provides constant dosing.

● Thin flow conveying method, used for wet-mix and dry-mix shotcrete.

● Reinforced shotcrete with steel or various polyment fibre.Complies with the essential health and safety requirements of the Directive

   2006/42/EC.

Technical Data

Output Capacity:

5 cubic meter/hour  for wet shotcreting;

6.5~7cubic meter/hour for dry shotcreting.

Maximum Conveying Distance:

Dry: 200 m (660 ft)

Wet: 35 m (115ft)

Concrete Slump

8~15cm

Maximum Aggregate Size:

15 mm (3/5”)

Inner Diameter of Conveying Hose:

50mm (1 5/8”)

Working Compressed Air Pressure:

29 ~ 87 psi (0.2 ~ 0.6 MPa)

Conveying Air Consumption:

320~ 350 cfm (9 ~ 10 cubic meter / min)

Ideal Rotor Speed:

11 rpm

Main Motor Power:

*E-motor, 5.5kW (7.5 hp)

Dosing Pump Model:

BRJ15

Rated Pressure of Dosing Pump:

17.5~88L/h

Dosing Pump Output:

28~140L/hour

Dimensions:

2050 x 1100 x 1270 mm

Net Weight:

1200 Kg

Noise:

Less than 80dB

Advantage

● High-accuracy Gearbox, high clean degree inside;

● High wear resistance and longer use life consumable parts;

RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS

Sealing Plate

Rotor Disk

Rubber Chamber

Cone Casing Pipe

Rubber Elbow

Nozzle

● Military standard solid wheels for different construction site;

● IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;

● National standard bearing, valve and screw etc.;

● All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the

   casting;

● The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;

● Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;

● Painted after sandblasting for a pretty appearance;
