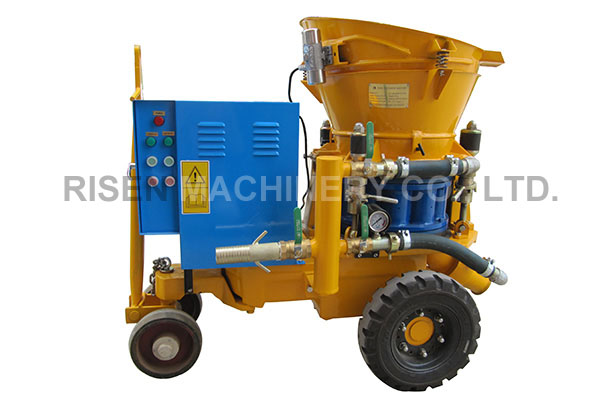

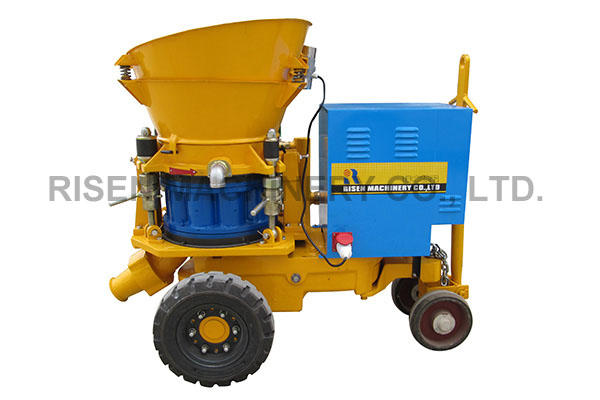

RISEN PZ5M

A special middle-size rotary shotcrete machine with variable output, to spray the dry or damp concrete mixture in tunnel, deep-foundation engineering, slope engineering, swimming pool etc.

Only available in E-motor

Output Capacity: 1.1~5.5cubic meter/hour

Maximum Aggregate: 15mm

Description:

RISEN PZ5M is a special middle size rotary shotcrete machine. Its output can be adjusted from 1.1~5.5cubic meter/hour, applied for spraying the dry or damp concrete mixture. And, it has been designed especially for steel fibre spraying.

RISEN MACHINERY system | RISEN MACHINERY CMS

Application:

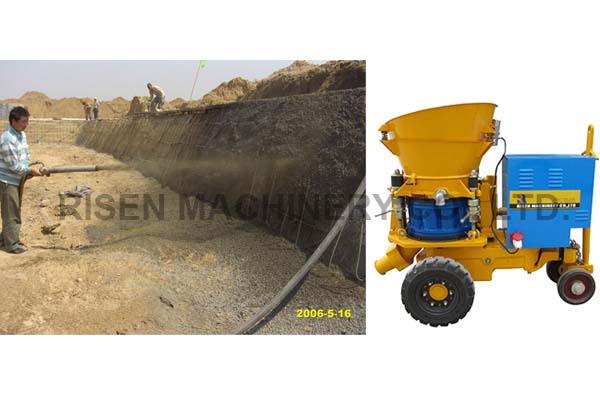

● Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.

● Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

● Refractory spraying and repair for industrial kilns or kilns’ inner liner.

Features:

● Variable output.

● Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce

   clearance and maintenance period.

● Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

● Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong

   consumption parts life.

● Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

● Complies with the essential health and safety requirements of the Directive 2006/42/EC.

Technical Data

Output Capacity:

1.1~5.5 cubic meter/hour

Maximum Conveying Distance:

200 m (660 ft)

Desired Shotcrete Ingredient Ratio:

Cement/sand and gravel  < 0.35

Maximum Aggregate Size:

15 mm (3/5”)

Inner Diameter of Conveying Hose:

51 mm (2”)

Working Compressed Air Pressure:

29 ~ 87 psi (0.2 ~ 0.6 MPa)

Conveying Air Consumption:

248 ~ 283 cfm (7 ~ 8 cubic meter / min)

Ideal Rotor Speed:

2.2~11 rpm

Main Motor Power:

E-motor, 5.5kW (7.5 hp)

Dimensions:

1500 x 800 x 1280 mm

Net Weight:

720 Kg

Noise

Less than 80dB

Advantage

● High-accuracy Gearbox, high clean degree inside;

● High wear resistance and longer use life consumable parts;

RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS RISEN MACHINERY system | RISEN MACHINERY CMS

Sealing Plate

Rotor Disk

Rubber Chamber

Cone Casing Pipe

Rubber Elbow

Nozzle

● Military standard solid wheels for different construction site;

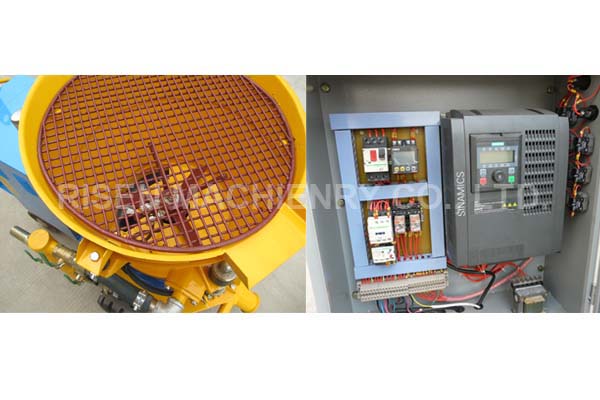

● IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;

● National standard bearing, valve and screw etc.;

● All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not

   the casting;

● The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;

● Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;

● Painted after sandblasting for a pretty appearance;
