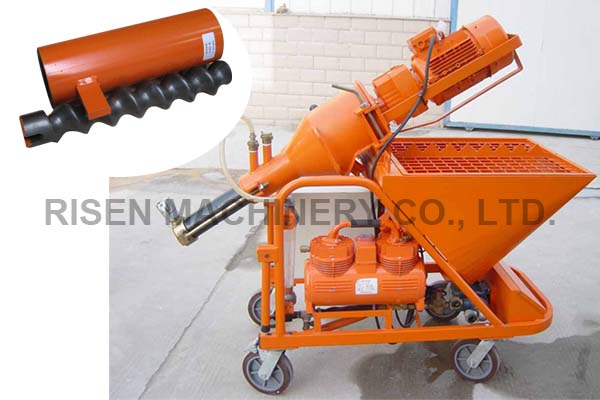

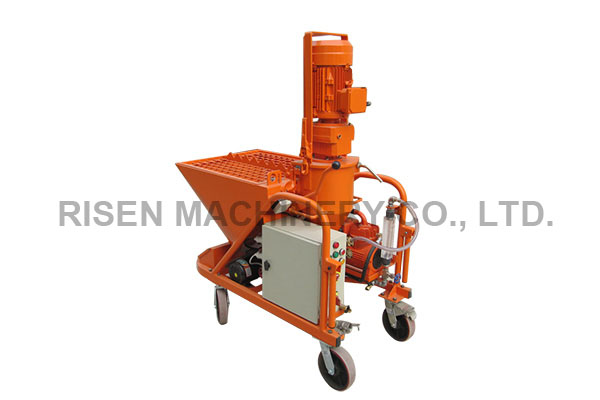

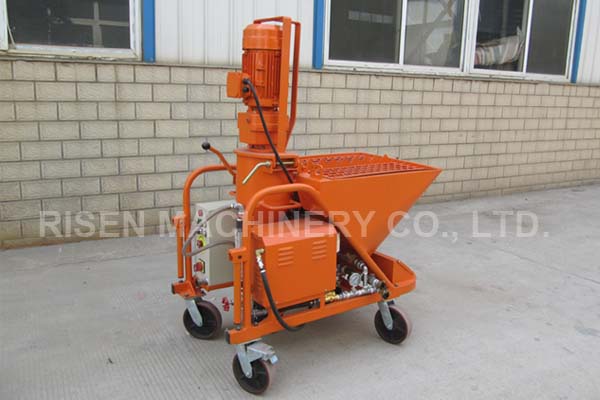

RISEN RX30

A compact and highly efficient screw pump to spray the wet ready-mixed cement slurry, mortar, etc., equipped with small air compressor,

Output: 30 Litre/min

Work pressure: 3MPa (30bar)

Description:

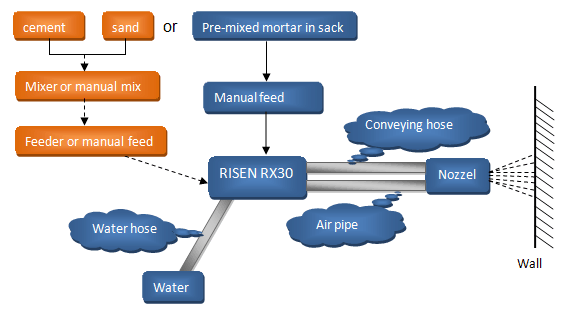

RISEN RX30 is a screw pump. It is a continuously working mixing machine, equipped with small air compressor, water pump, flow meter, to spray the dry ready-mixed cement mortar, etc. This machine permits the easy and comfortable transport due to its small and handy dimensions and low weight.

RISEN MACHINERY system | RISEN MACHINERY CMS

Requirement on the materials:

To have a perfect mortar spraying, the diameter of the sand shall not be too big. The max. sand size is 2mm. And, the cement/sand ratio shall be bigger than ≥ 1:3.

Application:

To spray or pump all pumpable dry ready-mixed mortars or materials, such as cement mortar, lime plaster, gypsum plaster, masonry mortar, insulation plaster, self-leveling floor screed, etc.

Features:

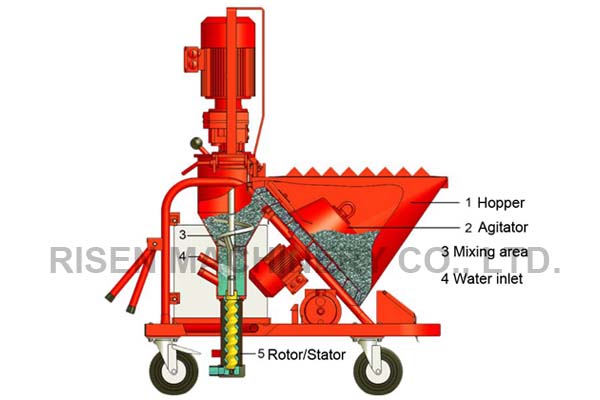

● The integrated machine with mixing pipe, self-suck water pump, mini compressor and rotor/stator pump;

● Continuously mixing and pumping;

● Small and handy size and low weight, quickly and easily transport even in the most confined spaces;

● The rotor/stator pump ensures the materials is pumped and sprayed out continuously and evenly;

● The machine always works with efficiency and silence;

● The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.

Technical Data

Output

30L/min

Working Pressure

3MPa (435psi)

Total Power

8.5kW (11.6hp)

Voltage of E-motor

380V, 50Hz, 3-phase

Rev. of Rotor

380rpm

Rated output of compressor

250L/min

Rated output of water pump

700L/hour

Max. Conveying Dist.

20m

Hopper Capacity

120L

Loading Height

1000mm

Conveying Hose ID

25mm or 32mm

Air Hose ID

13mm

Overall Dimension

1240*680*1550mm

Weight

280kgs

Advantage

● Equipped with excellent quality small-size air compressor;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Wear resistance rotor and stator can be replaced in the flash as required;

● Painted after sandblasting for a pretty appearance.
