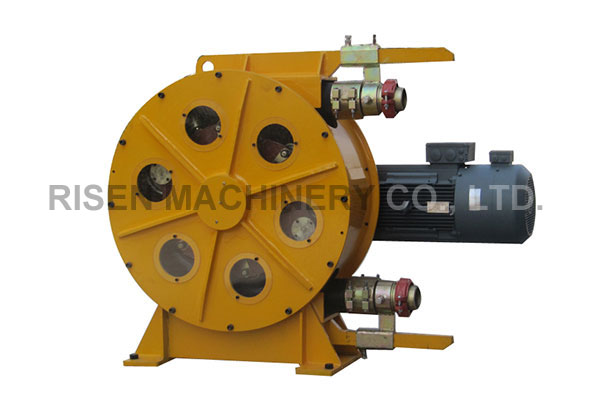

RH Series Hose Pumps

A kind of peristaltic pump, work as the dosing pump, bentonite pump, foam pump, slurry pump in tunnel boring machine etc.

More than 20 standard models for your choice;

Special engineers on the design of the special models as your request;

Products List

> SHOTCRETE MACHINE

> SHOTCRETE PUMP

> HOSE PUMP

> GROUT MIXER PUMP

> GROUT PUMP

> GROUT MIXER & MORTAR MIXER

> MORTAR PUMP

> A New Product

> TBM and our hose pump

> Our PZS3000 and RPB7

> SGS INSPECTION

More >

Description:

RISEN has been engaged in the research and production of hose pump for many years. With the experiences and special technology, Risen won a quick development on the hose pump in the recent years. Today Risen hose pumps are the very mature products with different kinds of standard models and many special models designed as the customer’s request.  Risen pumps are widely applied at home and abroad.

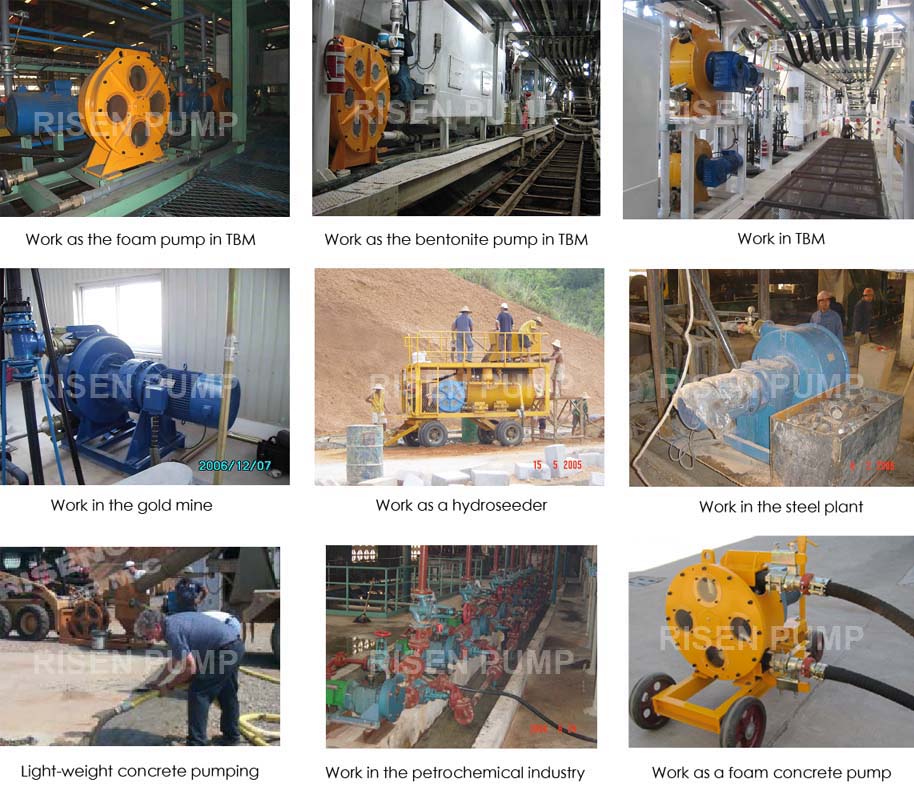

Application:
● To work as a benonite pump or foam，slurry pump in Tunnel Boring machine.

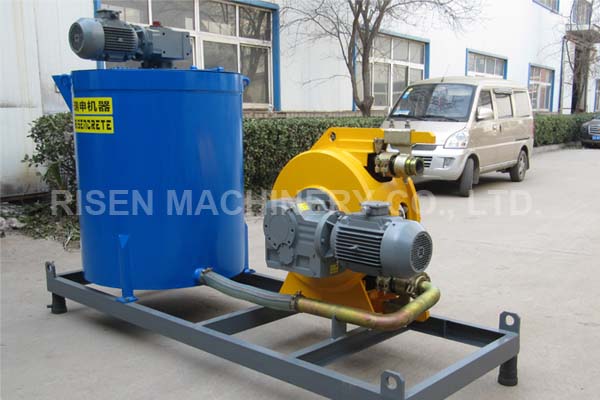

● Construction – pumping the cement slurry, mortar or light-weight concrete or foam concrete, etc.
● Chemical – corrosive acids,and bases.Textiles – fibres,dyes and additives.
● Pint and pigments – dispersion mill feed, pigment and latex transfer.
● Wastewater treatment – lime, kalic,sodium hypochlorite,ferric chloride and sludges.
● Printing and packaging – varnishes,inks, coatings and adhesives.
● Mining and mineral separation – tailing
● Slurries,sludges and reagents.
● Ceramics and glass – fine china.RISEN MACHINERY system | RISEN MACHINERY CMS

Features:

● Strong Self – priming;

● Dry running ability;

● Be reversible;

● No metal rub within the hose;

● Pumped material only touches the hose;

● Easy maintenance, short down time;

RISEN MACHINERY system | RISEN MACHINERY CMS

The work principle of RISEN RH series hose pumps is:

With the running of rotor, the squeeze roller acts the planetary motion along the squeeze hose, the materials inside squeeze hose is outputted along squeeze hose because of the squeeze and push of roller. Together with the materials out, vacuum status will be formed in the squeeze hose, which makes the materials near from suction end of squeeze hose be sucked by negative-pressure. Along with the cyclic squeezing of roller, the slurry is pumped continually.

Technical Data

Model

 Output

Max. Pressure

Hose ID

Hose

OD

Max.

Particle

Dia.

Max.

Suction

 Left

Motor

 Power



 liter/hour

MPa

mm

mm

mm

m

kW

RH15

 210

0.6

15

36

0

2

0.55

RH15B

 300

0.6

15

36

0

2

0.55

RH25

 800

1.5

25

49

0

3

1.1

RH25B

 1300

1.5

25

49

0

3

1.5

RH32

 1300

1.5

32

60

1

4

2.2

RH32B

 1800

1.5

32

60

1

4

2.2

RH38

 2000

1.5

38

66

3~5

4

2.2

RH38B

 2700

1.5

38

66

3~5

4

3.0

RH38C

 3500

1.5

38

66

3~5

4

4.0

RH50-558

 4200

1.5

51

84

5

5

4.0

RH50-558B

 5400

1.5

51

84

5

5

5.5

RH50-680

 6300

1.5

51

84

5

5

7.5

RH50-680B

 8000

1.5

51

84

5

5

7.5

RH65-680

 9200

1.2

64

100

5

5

7.5

RH65-680B

 12000

1.5

64

100

5

5

11.0

RH65-770

 13500

1.2

64

100

5

5

11.0

RH65-770B

 16500

1.0

64

100

5

5

11.0

RH76-770

 18000

1.0

76

116

5

5

11.0

RH76-770B

 22000

1.0

76

116

5

5

15.0

RH76-915

 24000

1.0

76

116

5

5

15.0
RH76-915B 30000 1.0 76 116 5 5 18.5
RH89 30000 1.0 89 135 5 5 18.5
RH89B 35000 1.0 89 135 5 5 22.0

RH100

 33500

1.0

102

148

5

5

18.0

RH100B

 42000

0.75

102

148

5

5

18.0



Advantage

● Low accuracy request on squeeze tube;

● Squeezed by the squeeze rollers, rolling friction to have the low request on the lubrication;

● Recovery of the squeeze tube against the recovery rollers;

● Squeeze interval adjusted by the eccentric roller;

● Natural rubber hose with 4 layer of thread reinforcement as the squeeze hose.
