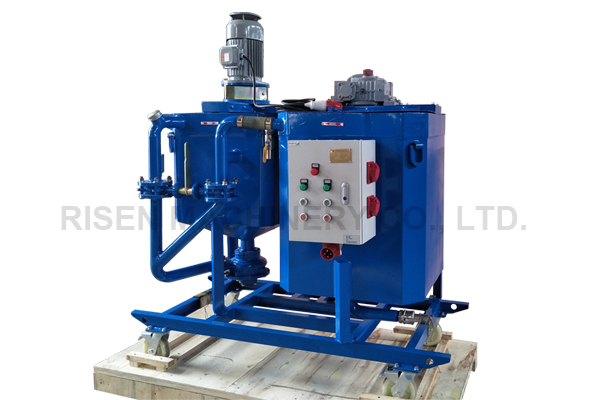

RISEN RM150/320

High work efficiency grout mixer for cement slurry or other similar materials suitable for being mixed quickly. Mixing tank and agitator tank can be apart to be two separate units when transportation.

Mixing tank capacity: 150L

Agitator tank capacity: 320L

Mixing time: 3 minutes/ time

Description:

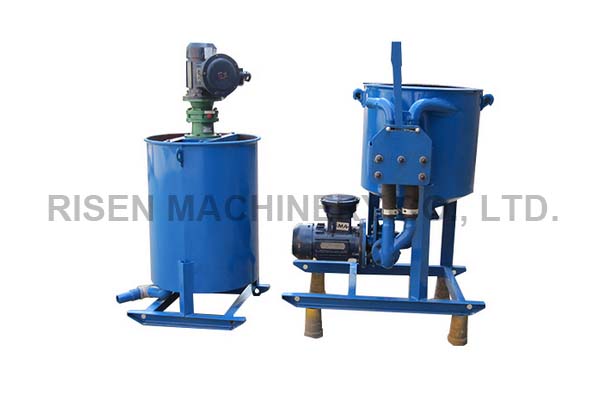

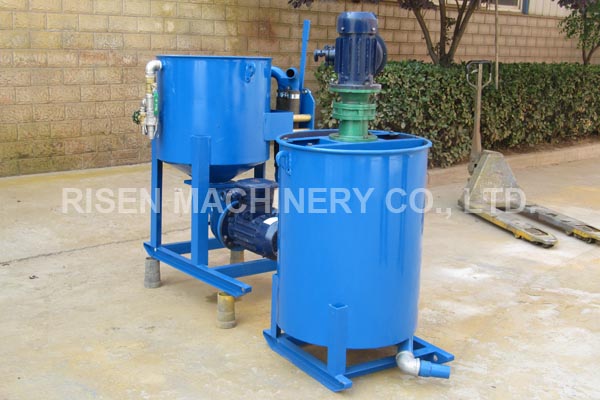

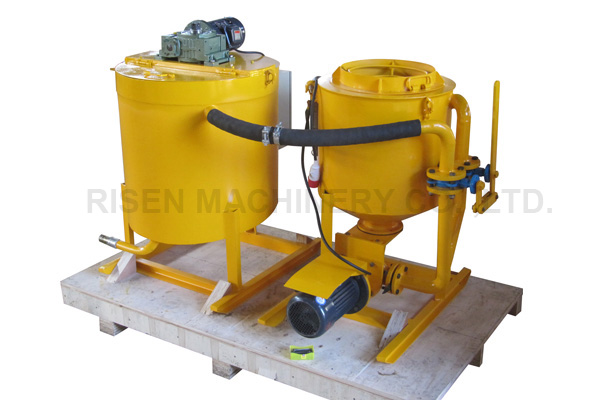

RISEN RM150/320 is a high work efficiency grout mixer for compounding the cement and water. It consists of two separate tanks---mixing tank and agitator tank, more convenient for transportation.

It is a good work partner of RISEN RG series grout pump.

Application:

Mixing the cement (or similar material) and water under high efficiency

Features:

● High mixing efficiency, motor directly driving impeller to get the high-speed liquid flow, about 2~3minutes to complete a mixing;

● High reliability, vertical-mount motor, easy to seal, low failure rate and good seal;

● Adopt the ordinary rubber pipe as consumable part for control valve, easy to get it on construction site.

Technical Data

Mixing tank capacity

150L

Agitator tank capacity

320L

Mixing Time

3 minutes at a time

Mixing Unit

3kW

Suitable W/C rate

0.5

Agitating Unit

1.5kW

Chassis

kickstand

Overall Size of Mixing Tank

970x650x1128mm

Overall Size of AgitatingTank

920x920x1593mm

Weight

450kg

Advantage

● Tank body manufactured by the thicker plate for more reliable work and longer use life;

● The whole stamping structure for the tank bottom;

● Special weld handling;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Special-design seal structure for the pump;

● Painted after sandblasting for a pretty appearance.
