RISEN RM300/750

A kind of grout mixer for cement slurry or other similar materials suitable for being mixed quickly.

Mixing tank capacity: 300L

Agitator tank capacity: 750L

Mixing speed: 550r/min

Description:

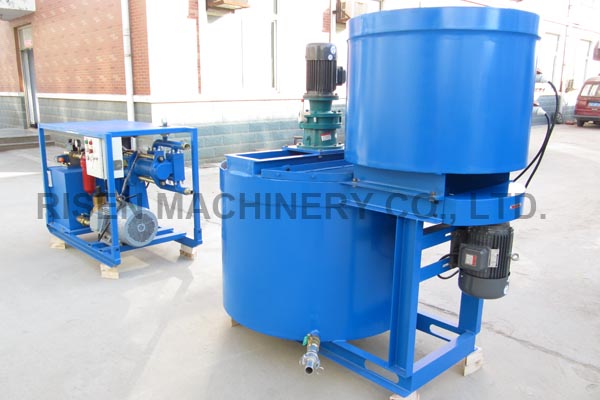

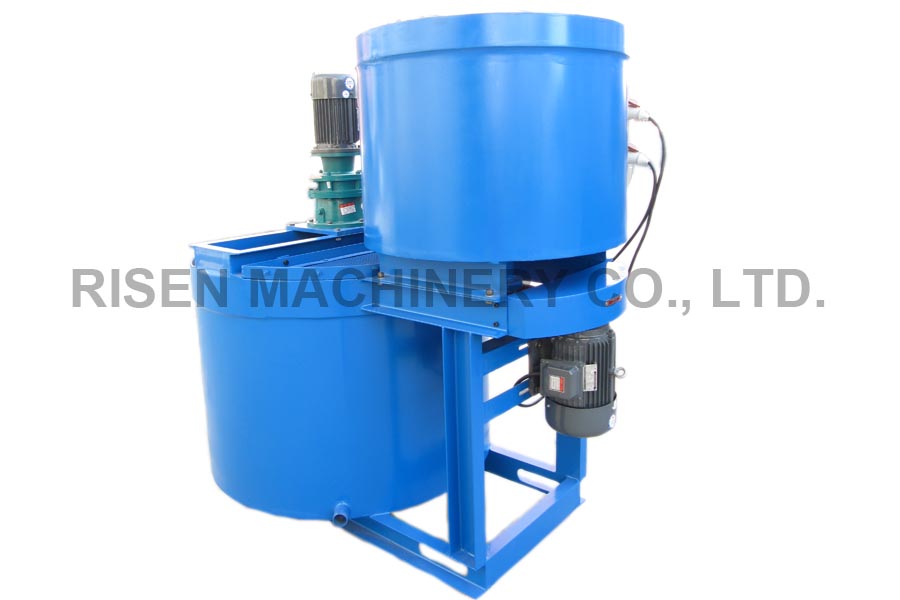

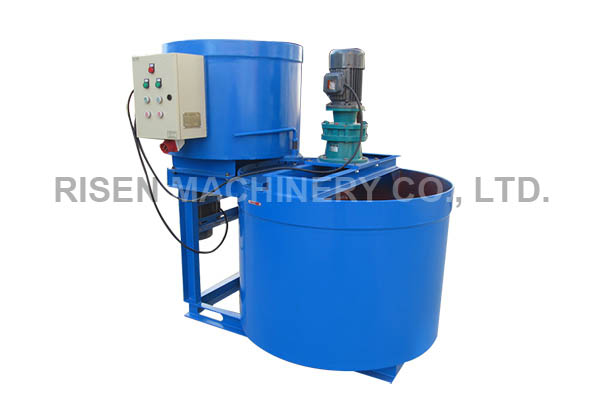

RISEN RM300/750 is a double-layer grout mixer. The upper layer is a mixing tank and the lower layer is an agitator tank. Combine with grout pump, it can grout with pressure in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

Application:

Mixing the cement grout or the similar slurry suitable for being mixed quickly.

Features:

● Compact structure, mixing tank designed to be the upper of the agitator tank, be convenient for discharging;

● Rubber seal for the discharging outlet;

● High productivity, agitator tank’s capacity is twice more than the mixing tank’s.

Technical Data

Mixing tank capacity:

300 L

Agitator tank capacity:

750 L

Mixing speed:

550 r/min

Agitating speed:

33 r/min

Mixing Unit:

4 kW

Agitating Unit:

1.5 kW

Chassis:

kickstand

Dimensions:

1698×1118×1600 mm

Weight:

500 kg

Advantage

● Tank body manufactured by the thicker plate for more reliable work and longer use life;

● Special welding handling;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Painted after sandblasting for a pretty appearance.
